ELCUT
By ELCUT
Elcut is a brand of thermal links (TCOs) manufactured by Uchihashi Estec Co., Ltd., based in Osaka, Japan. Chatham Components serves as an authorized distributor for the Elcut product line.
BZ11 Series by
BZ07 Series by
BZ05 Series by
BW12 by
A2JD by
KB Series by
ETR Series by
E2 Series by
EC Series by ELCUT
Y5JA Series by ELCUT

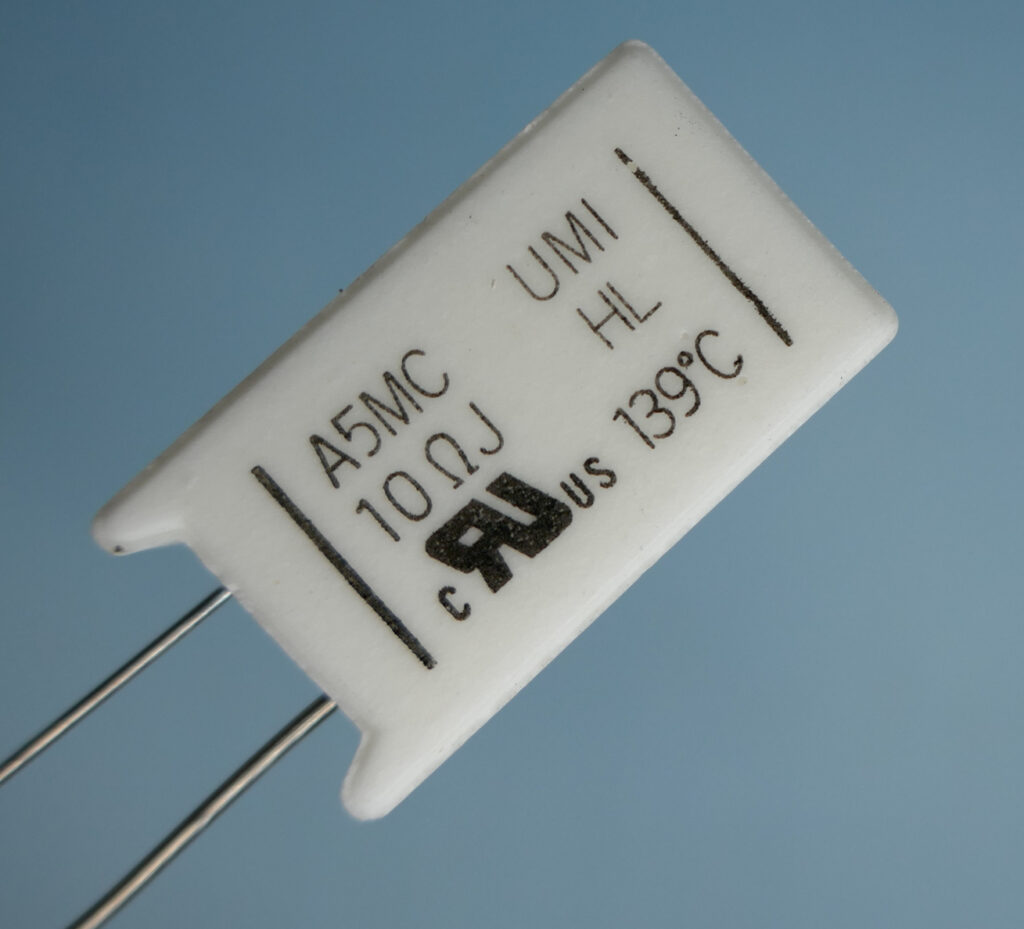

A5MC Series by ELCUT
| Part N. | Temp Tf (°C) | Ampere (A) | Voltage (V) |
|---|---|---|---|
| SE | 108 | 1 | AC250 |
| SE | 108 | 1.5 | AC125 |
| S2 | 115 | 1 | AC250 |
| S2 | 115 | 1.5 | AC125 |
| SX | 133 | 1 | AC250 |
| SX | 133 | 1.5 | AC125 |
| SJ | 145 | .8 | AC250 |
S Series by ELCUT Series
| Part N. | Temp Tf (°C) | Ampere (A) | Voltage (V) |
|---|---|---|---|
| NC2 | 115 | 3.5 | AC125 |
| NC2 | 115 | 4 | DC50 |
| NCX | 133 | 2 | AC250 |
| NC2 | 115 | 2 | AC250 |
| NCX | 133 | 3.5 | AC125 |
| NCX | 133 | 4 | DC50 |
NC Series by ELCUT
| Part N. | Temp Tf (°C) | Ampere (A) | Voltage (V) |
|---|---|---|---|
| U2E | 108 | 2 | AC250 |
| U22 | 115 | 2.5 | AC250 |
| U2X | 133 | 2.5 | AC250 |
| U2J | 145 | 2.5 | AC250 |
| U2J | 145 | 5 | AC125 |
U2 Series by ELCUT
| Part N. | Temp Tf (°C) | Ampere (A) | Voltage (V) |
|---|---|---|---|
| X2E | 108 | 3 | AC250 |
| X22 | 115 | 3 | AC250 |
| X22 | 115 | 5 | AC125 |
| X2X | 133 | 3 | AC250 |
| X2X | 133 | 5 | AC125 |
X Series by ELCUT
| Part N. | Temp Tf (°C) | Ampere (A) | Voltage (V) |
|---|---|---|---|
| 62 | 115 | 0.5 | AC250 |
| 62 | 115 | 0.8 | AC125 |
| 62 | 115 | 2.5 | AC50 |
| 62 | 115 | 2.5 | DC50 |
| 6X | 133 | 0.3 | AC250 |
| 6X | 133 | 0.8 | AC125 |
| 6X | 133 | 2.5 | DC50 |
6 Series by ELCUT
| Part N. | Temp Tf (°C) | Ampere (A) | Voltage (V) |
|---|---|---|---|
| 47MT | 139 | 6 | DC50 AC50 |
47 Series by ELCUT
| Part N. | Temp Tf (°C) | Ampere (A) | Voltage (V) |
|---|---|---|---|
| 37MT | 139 | 8 | DC50 |
| 37C | 139 | 11 | DC50 |

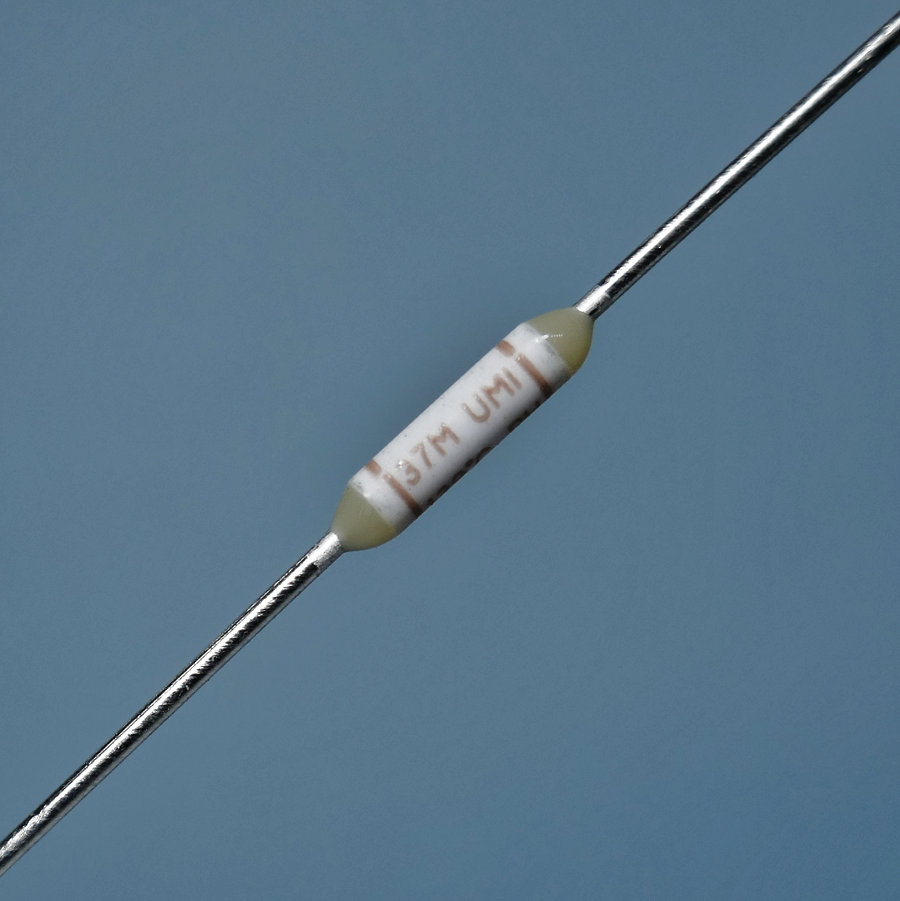

37 Series by ELCUT
| Part N. | Temp Tf (°C) | Ampere (A) | Voltage (V) |
|---|---|---|---|
| 12G | 65 | 1.5 | AC250 |
| 12Y | 76 | 2 | AC250 |
| 12E | 108 | 2 | AC250 |
| 122 | 115 | 2 | AC250 |
| 12X | 133 | 2 | AC250 |
| 12X | 133 | 3.5 | AC125 |
| 12X | 133 | 3.5 | DC50 |
| 12M | 139 | 1.5 | AC250 |
| 12M | 139 | 7 | DC50 |
| 12J | 145 | 2 | AC250 |
12 Series by ELCUT
| Part N. | Temp Tf (°C) | Ampere (A) | Voltage (V) |
|---|---|---|---|
| 22YR | 76 | 4 | AC250 |
| 22YR | 76 | 5 | AC125 |
| 22ER | 108 | 4 | AC250 |
| 22ER | 108 | 5 | AC125 |
| 222R | 115 | 5 | AC250 |
| 222R | 115 | 7 | AC125 |
| 22XR | 133 | 4 | AC250 |
| 22XR | 133 | 7 | AC125 |
| 22MR | 139 | 2.5 | AC250 |
| 22MR | 139 | 14 | DC50 |
| 22JR | 145 | 3.5 | AC250 |
| 22JR | 145 | 7 | AC125 |
22 Series by ELCUT
| Part N. | Temp Tf (°C) | Ampere (A) | Voltage (V) |
|---|---|---|---|
| 32E | 108 | 1 | AC250 |
| 32E | 108 | 2 | AC125 |
| 322 | 115 | 1 | AC250 |
| 322 | 115 | 2 | AC125 |
| 322 | 115 | 4 | DC50 |
| 32X | 133 | 1 | AC250 |
| 32X | 133 | 2 | AC125 |
| 32X | 133 | 4.5 | DC50 |
| 32M | 139 | 1 | AC250 |
| 32J | 145 | 0.8 | AC250 |
| 32J | 145 | 2 | AC125 |

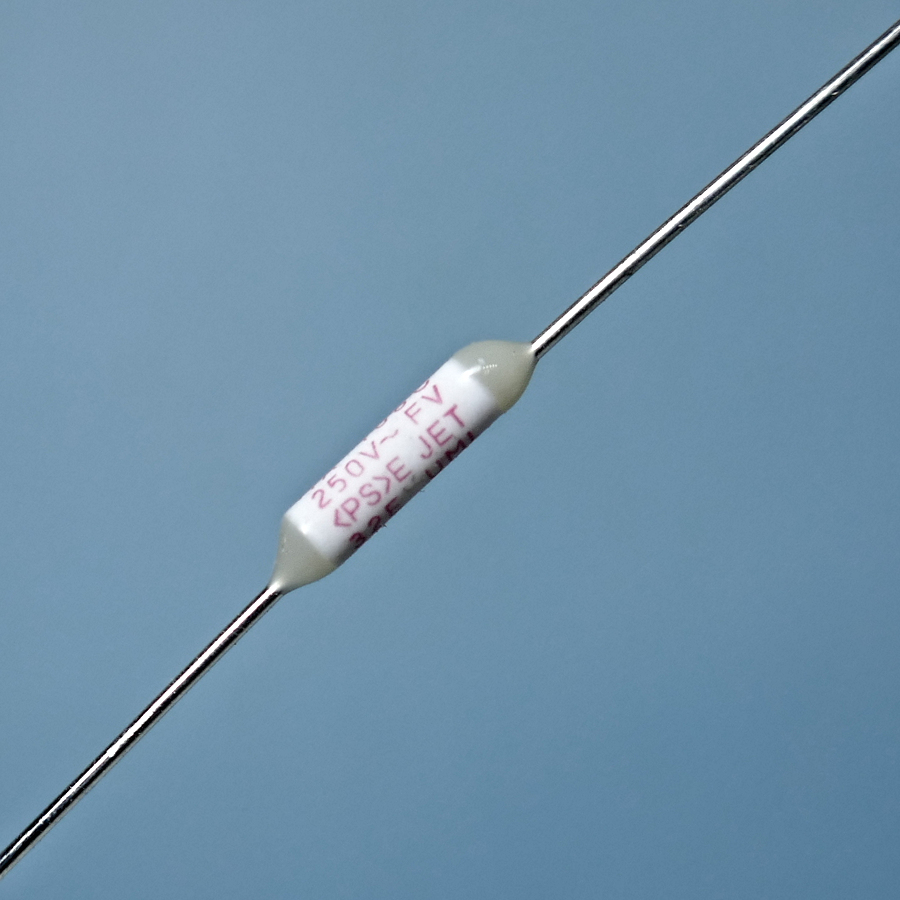

32 Series by ELCUT
| Part N. | Temp Tf (°C) | Ampere (A) | Voltage (V) |
|---|---|---|---|
| 44E | 108 | 0.5 | AC250 |
| 44E | 108 | 1 | AC125 |
| 44E | 108 | 2.5 | DC50 |
| 442 | 115 | 1 | AC250 |
| 442 | 115 | 1.5 | AC125 |
| 442 | 115 | 3.5 | AC50 |
| 442 | 115 | 3.5 | DC50 |
| 44X | 133 | 0.5 | AC250 |
| 44X | 133 | 1.5 | AC125 |
| 44X | 133 | 3.5 | DC50 |
| 44K | 150 | 0.5 | AC250 |
44 Series by ELCUT
