- Radial Design
- Non-resettable thermal link
- Fusible alloy type
- RoHS and REACH compliant
- Simple construction ensures reliability
- Superior thermal sensitivity
Radial Design
| Part N. | Temp Tf (°C) | Ampere (A) | Voltage (V) | Function Temp (°C) | Holding Temp Th(°C) | Max use Temp (°C) | Max Temp Limit Tm(°C) |
|---|---|---|---|---|---|---|---|
| NC2 | 115 | 3.5 | AC125 | 111±3 | 74 | 58 | 200 |
| NC2 | 115 | 4 | DC50 | 111±3 | 66 | 49 | 200 |
| NCX | 133 | 2 | AC250 | 129±3 | 110 | 95 | 200 |
| NC2 | 115 | 2 | AC250 | 111±3 | 92 | 77 | 200 |
| NCX | 133 | 3.5 | AC125 | 129±3 | 91 | 77 | 200 |
| NCX | 133 | 4 | DC50 | 129±3 | 83 | 60 | 200 |
| Part N. | PSE | UL | C-UL | VDE | CCC | KC |
|---|---|---|---|---|---|---|
| NC2 | JET5267-32001-1004 (AC250V) | E50082 | E50082 | 40020225 | 2009010205323137 (AC250V) | SU05029-9007 (AC250V) |
| NCX | JET5267-32001-1005 (AC250V) | E50082 | E50082 | 40020225 | 2009010205323137 (AC250V) | SU05029-9007 (AC250V) |

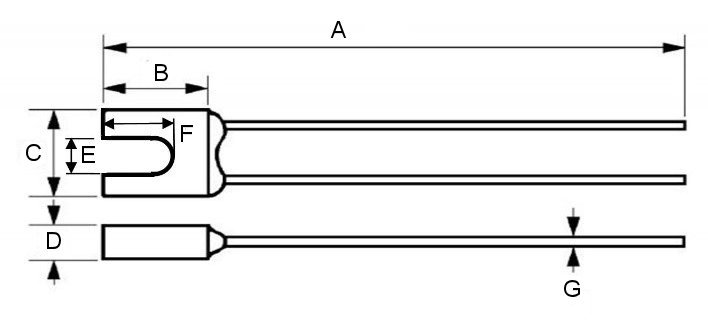

| Lead Length | A | B | C | D | E |
|---|---|---|---|---|---|
| Regular Size | 47±3 | 11.0±0.5 | 6.7±0.5 | 2.5±0.3 | 3.2±0.3 |
